How to Secure n8n on a VPS

What a secure n8n looks like

To secure n8n on a VPS is to close the gap between "it works" and "it will not hurt me". A self-hosted n8n holds the keys to everything it automates: the API tokens, the database logins, the customer data flowing through each run. An instance left open, or a webhook anyone can call, is not a convenience, it is a way in.

This guide takes the working install from the self-host n8n on a VPS guide and hardens it, one control at a time, proving each one on a real box rather than trusting a setting.

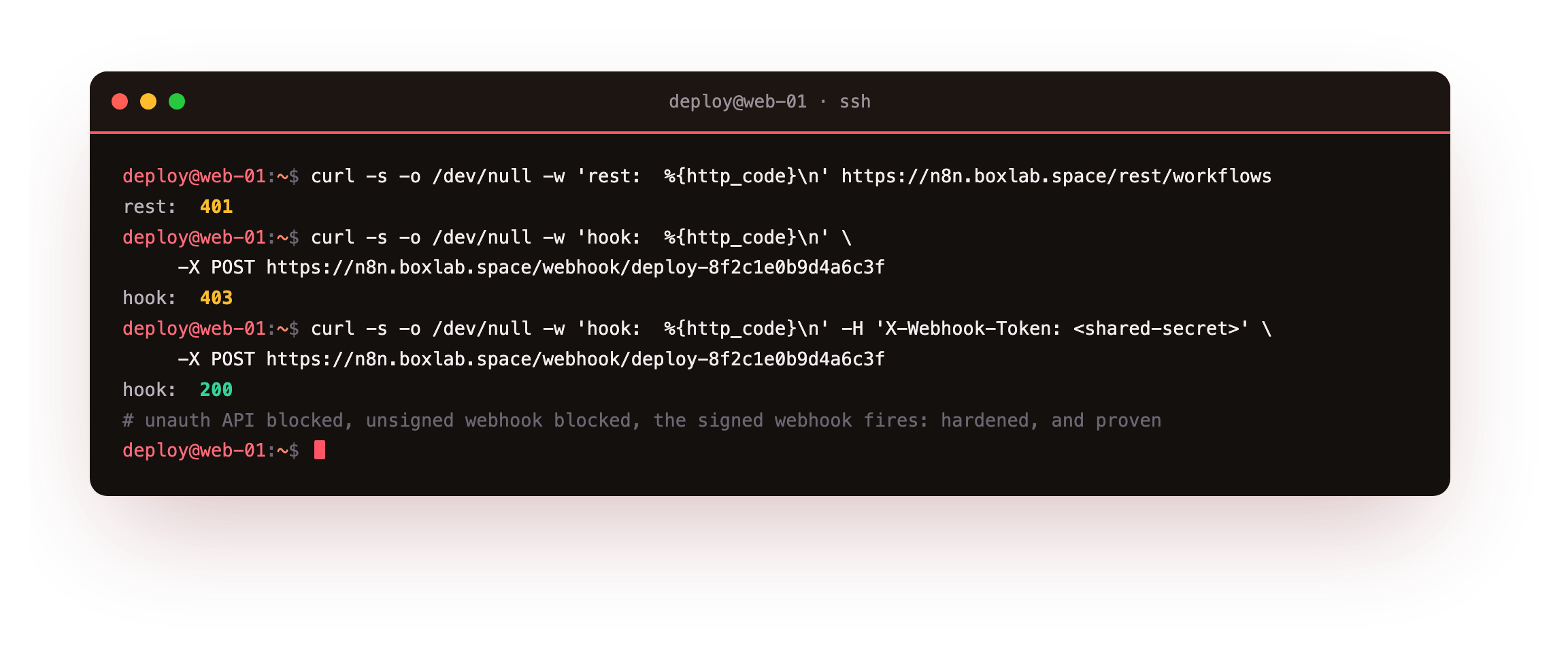

Here is the destination. Three requests against the hardened instance we built for this guide: an unauthenticated API call, a webhook without its shared secret, and the same webhook with it. The first two are turned away, the third runs.

# unauthenticated API call, no session
curl -s -o /dev/null -w 'rest:  %{http_code}\n' https://n8n.example.com/rest/workflows
# the webhook without the shared secret
curl -s -o /dev/null -w 'hook:  %{http_code}\n' \
     -X POST https://n8n.example.com/webhook/deploy-8f2c1e0b9d4a6c3f
# the webhook WITH the shared secret
curl -s -o /dev/null -w 'hook:  %{http_code}\n' -H 'X-Webhook-Token: <shared-secret>' \
     -X POST https://n8n.example.com/webhook/deploy-8f2c1e0b9d4a6c3f

A 401, a 403, then a 200. That is the shape of the whole guide: nothing runs without proof it is allowed to. Every screenshot below is genuine, captured on that live instance.

Before you begin

This guide hardens an instance you already have, so it starts a step in rather than from a bare box.

Work through the sections in order. Each ends with a check you can run, so you are never trusting that a control took effect, you are watching it.

Put the API behind a login

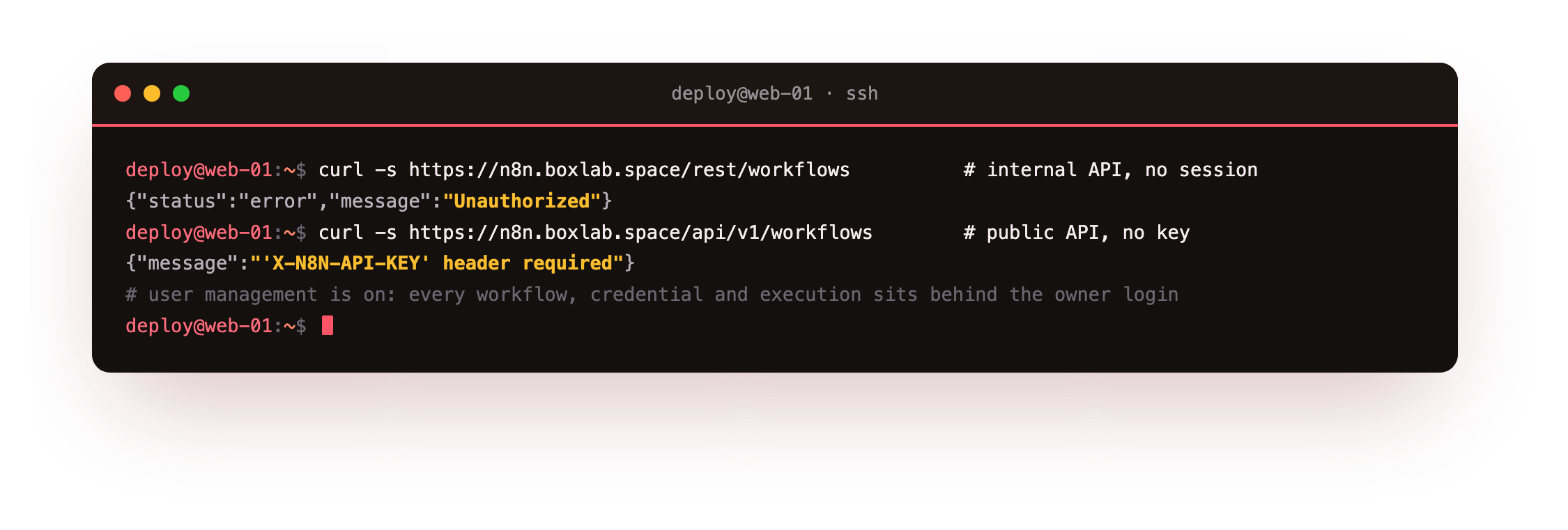

The first control is the one people assume they already have: authentication. n8n ships with user management on, which means the editor and its whole internal API sit behind the owner account you created at install. Confirm that, because a stray environment variable can turn it off. Ask the API for the workflow list with no session, then ask the public REST API without a key.

# the internal API the editor uses
curl -s https://n8n.example.com/rest/workflows
# the public REST API
curl -s https://n8n.example.com/api/v1/workflows

Both refuse. The internal endpoint returns Unauthorized, and the public API returns a demand for an X-N8N-API-KEY header. Nothing about your workflows, credentials or executions is readable without logging in first. If either returns data, user management is disabled: set N8N_USER_MANAGEMENT_DISABLED=false and recreate the container.

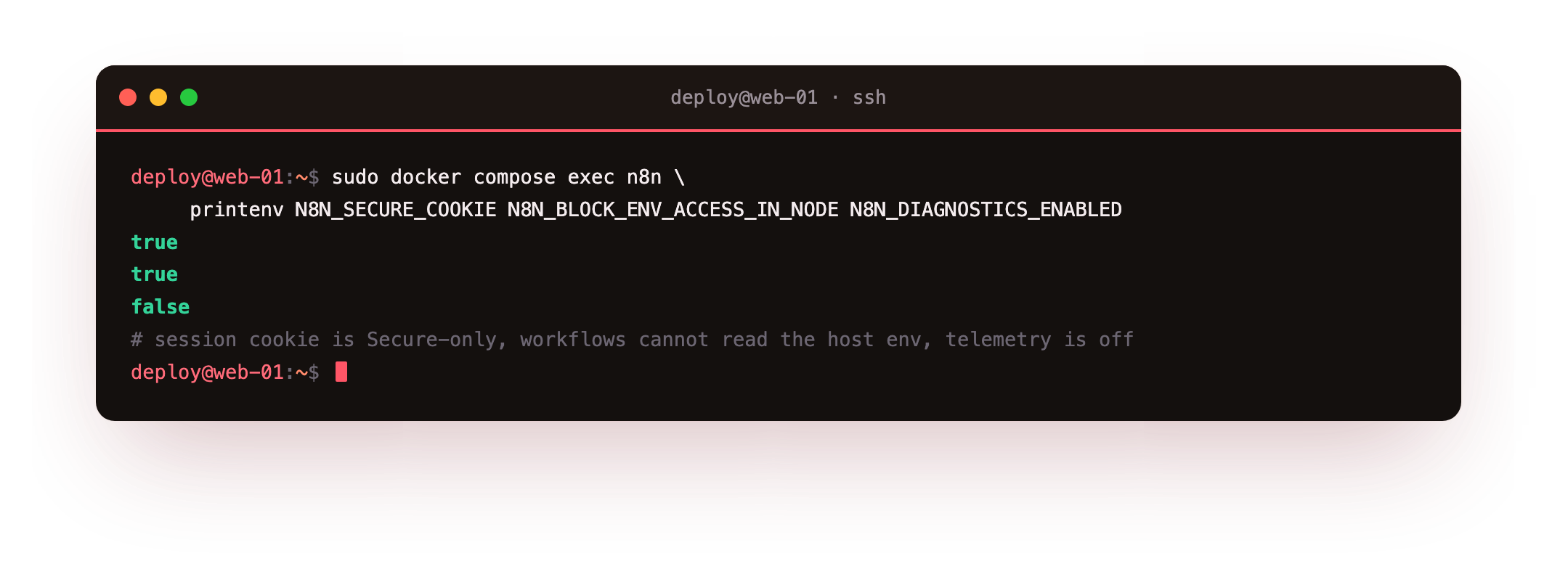

While you are in the environment, set three flags that harden the process itself, then read them back from inside the container so you know they landed.

sudo docker compose exec n8n \
     printenv N8N_SECURE_COOKIE N8N_BLOCK_ENV_ACCESS_IN_NODE N8N_DIAGNOSTICS_ENABLED

N8N_SECURE_COOKIE=true marks the session cookie Secure, so a browser only ever sends it over HTTPS. N8N_BLOCK_ENV_ACCESS_IN_NODE=true stops a workflow expression from reading the host environment, which is where your secrets live. N8N_DIAGNOSTICS_ENABLED=false turns off telemetry. Three lines, three smaller attack surfaces.

Encrypt the credentials your workflows carry

Every credential you store in n8n, an API key, a database password, a webhook secret, is encrypted with N8N_ENCRYPTION_KEY before it touches the database. That key is the difference between a stolen database dump being noise and being a breach, so it belongs in a .env that only its owner can read, never hard-coded into docker-compose.yml where it would land in git. Check the file mode, then look at what n8n actually wrote to the database for a real stored credential.

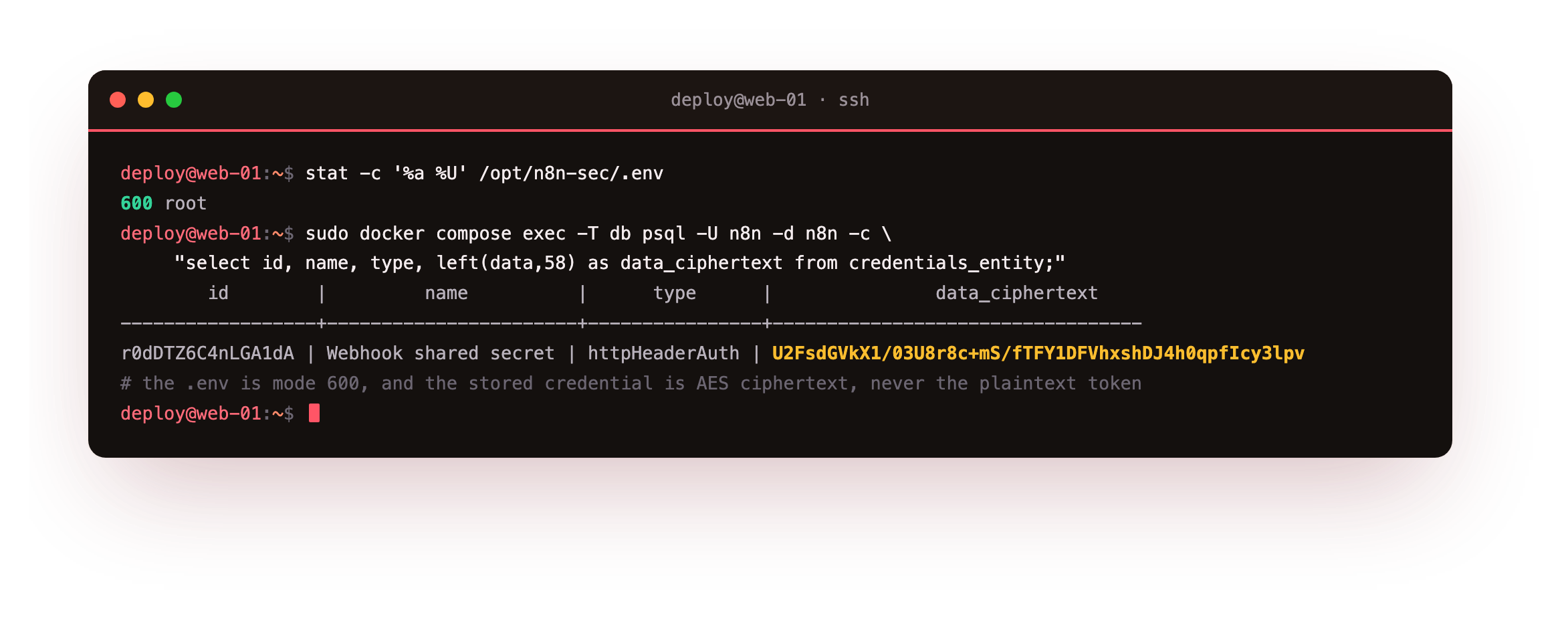

stat -c '%a %U' /opt/n8n/.env
sudo docker compose exec -T db psql -U n8n -d n8n -c \
     "select id, name, type, left(data,58) as data_ciphertext from credentials_entity;"

The .env is mode 600, readable only by root. The data column, which holds the credential we will use to sign webhooks later, is a block of AES ciphertext beginning U2FsdGVkX1, not the plaintext token. Search the whole blob for the real secret and it appears zero times. Anyone who reaches the database still cannot read the credential without the key that lives outside it.

Least privilege runs alongside this. The Postgres user is scoped to the one n8n database, not a superuser; the .env is 600; and with N8N_BLOCK_ENV_ACCESS_IN_NODE set, a workflow cannot read the key out of its own process. Back the key up the day you set it, and keep it apart from the database dump, because a dump restored under a different key leaves every credential unreadable.

Keep n8n on localhost and firewall the rest

n8n should have exactly one door to the internet, and it should be nginx. The container itself publishes only to loopback, so nothing outside the box can talk to the n8n process directly. A host firewall backs that up by denying inbound traffic that is not SSH or the web ports. Confirm both: what is actually listening, and what the firewall allows.

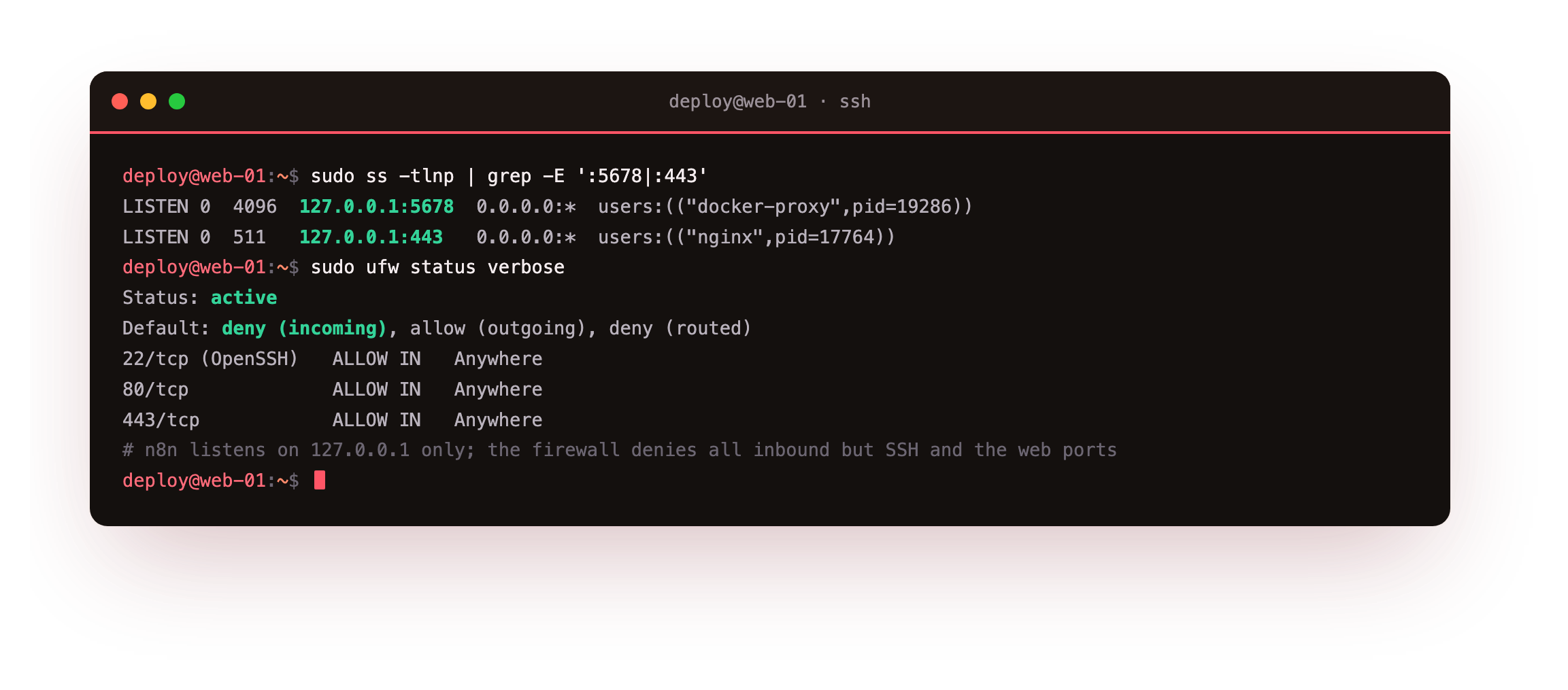

sudo ss -tlnp | grep -E ':5678|:443'
sudo ufw status verbose

n8n listens on 127.0.0.1:5678 and nginx on 127.0.0.1:443, both loopback, so a port scan of the public IP finds neither. ufw is active with a default of deny (incoming), and it opens only SSH and the web ports. Even if someone learned the n8n port, there is no route to it: it is not on a public interface, and the firewall would drop the packet anyway. Two independent layers, each enough on its own.

Real TLS and hardened headers

With n8n on loopback, nginx terminates HTTPS and adds the headers that tell a browser how to behave. The certificate is a real one, and the header block turns on HSTS, stops the page being framed, blocks content-type sniffing, trims the referrer, and denies the browser features n8n never uses.

# inside the server { } block for n8n.example.com
add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always;
add_header X-Frame-Options "SAMEORIGIN" always;
add_header X-Content-Type-Options "nosniff" always;
add_header Referrer-Policy "strict-origin-when-cross-origin" always;
add_header Permissions-Policy "geolocation=(), microphone=(), camera=()" always;
add_header Content-Security-Policy "frame-ancestors 'self'" always;

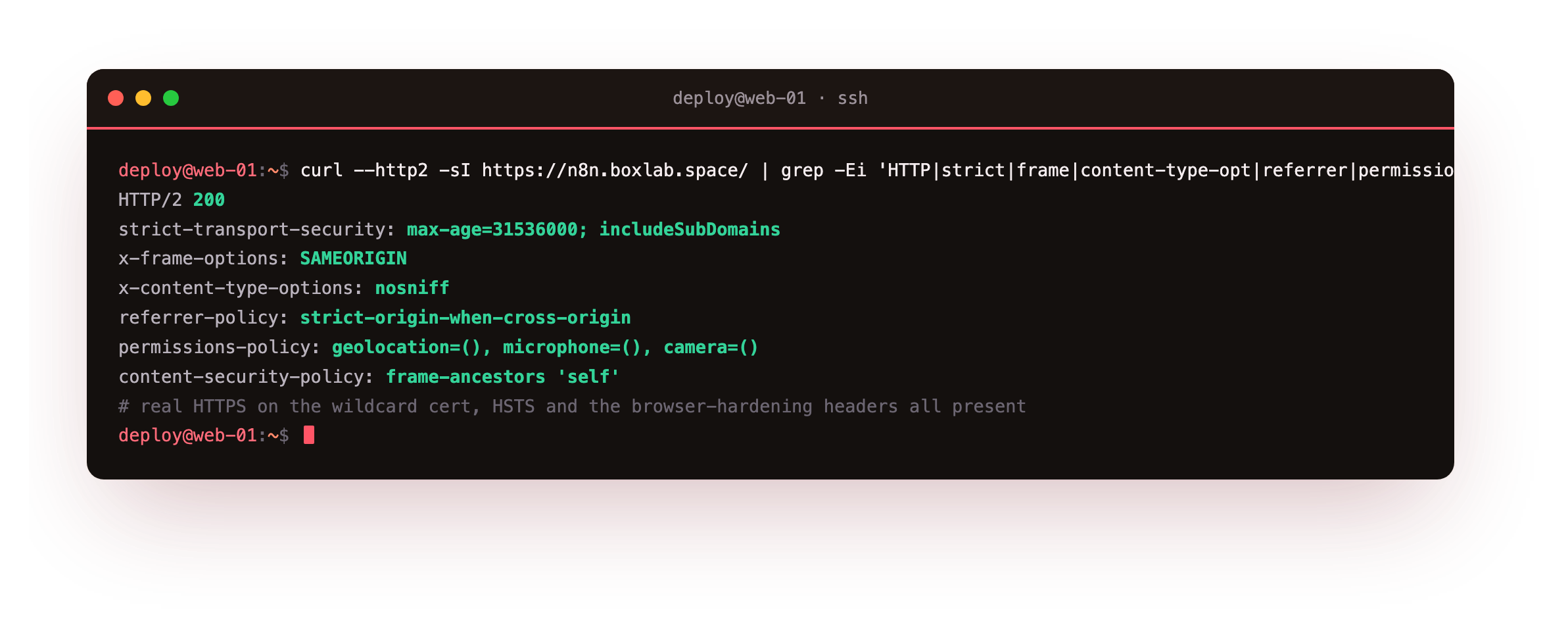

Reload nginx after nginx -t, then read the headers back over the wire so you are checking what a browser receives, not what the config says.

curl --http2 -sI https://n8n.example.com/

An HTTP/2 200 with strict-transport-security and the rest of the set present means the whole path works: a real certificate, HTTP/2, and a browser told to keep using HTTPS, refuse to be framed, and sniff nothing. The frame-ancestors 'self' policy is kept deliberately light so it hardens framing without breaking the editor, which is a single-page app.

Expose webhooks without exposing yourself

Webhooks are the one part of n8n you mean to leave reachable, which makes them the part worth the most care. The goal is a webhook that your systems can call and no one else can abuse. Three things get you there: a path that cannot be guessed, a secret that every caller must present, and a rate limit so the endpoint cannot be hammered.

Start with the path and the rate limit in nginx. Give the webhook prefix its own limit, so a flood of calls is throttled before it ever reaches n8n.

# /etc/nginx/conf.d/n8n-ratelimit.conf
limit_req_zone $binary_remote_addr zone=n8nhook:10m rate=2r/s;

location /webhook/ {
    limit_req zone=n8nhook burst=3 nodelay;
    limit_req_status 429;
    proxy_pass http://127.0.0.1:5678;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-Proto $scheme;
}

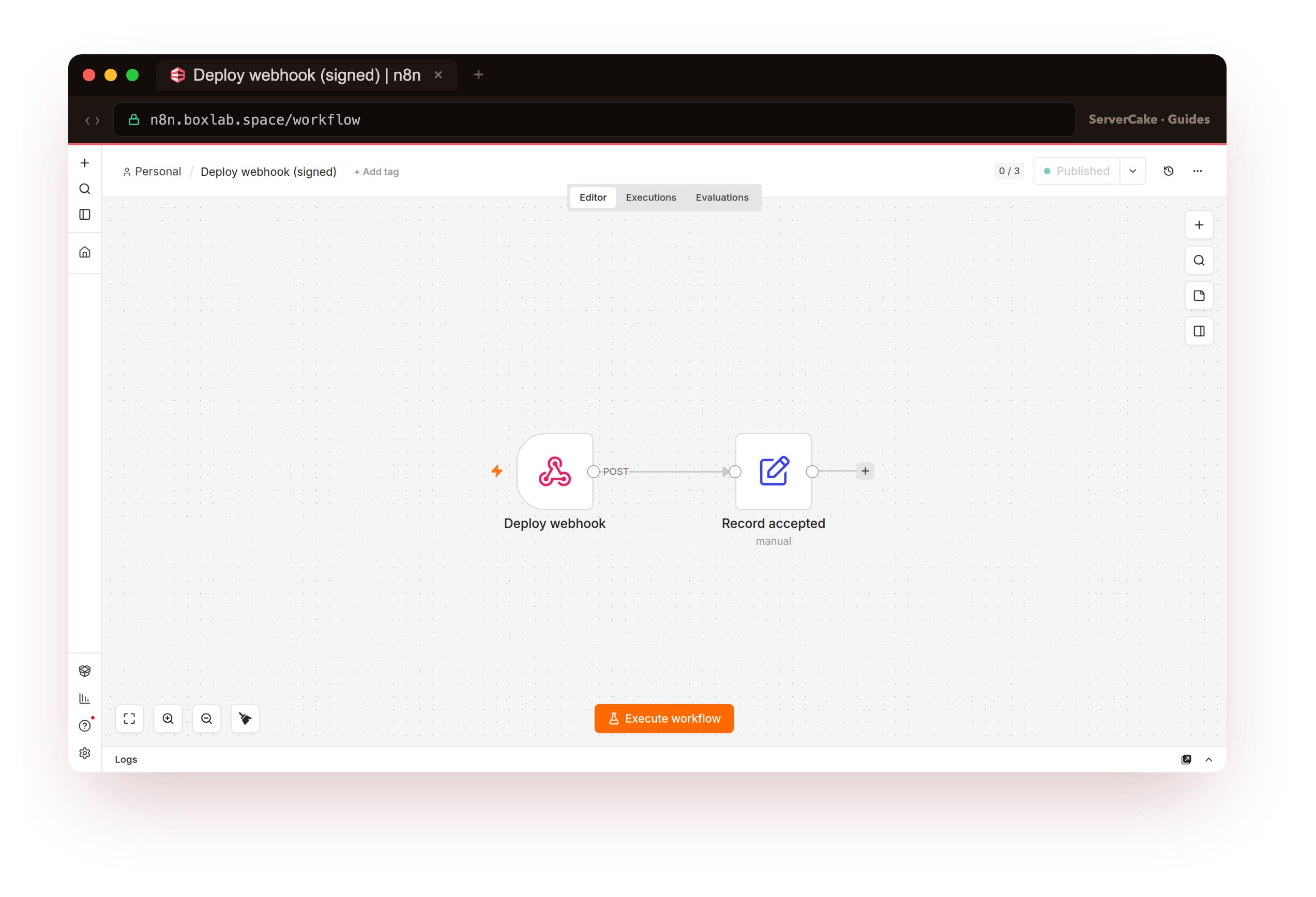

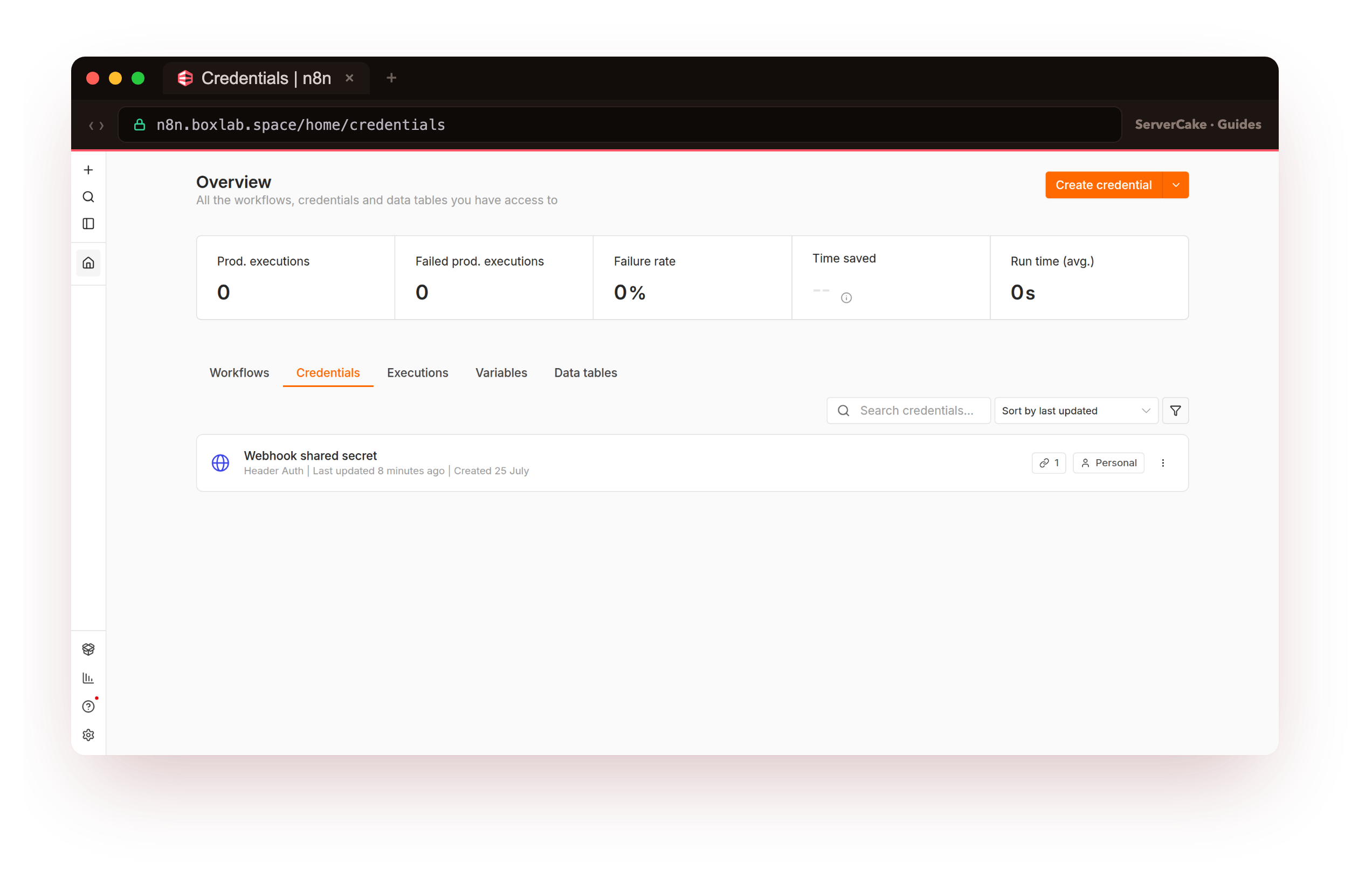

Now the secret. In the workflow, the Webhook node takes an authentication credential: set it to Header Auth and point it at the "Webhook shared secret" credential from earlier, an X-Webhook-Token header with a long random value. Give the node a path that is a random string, not /webhook/deploy, so the URL is itself hard to find. The workflow is the one below, a Webhook node into a Set node that shapes the accepted result.

The proof is two calls to the same URL. The first sends no token, the second sends the shared secret.

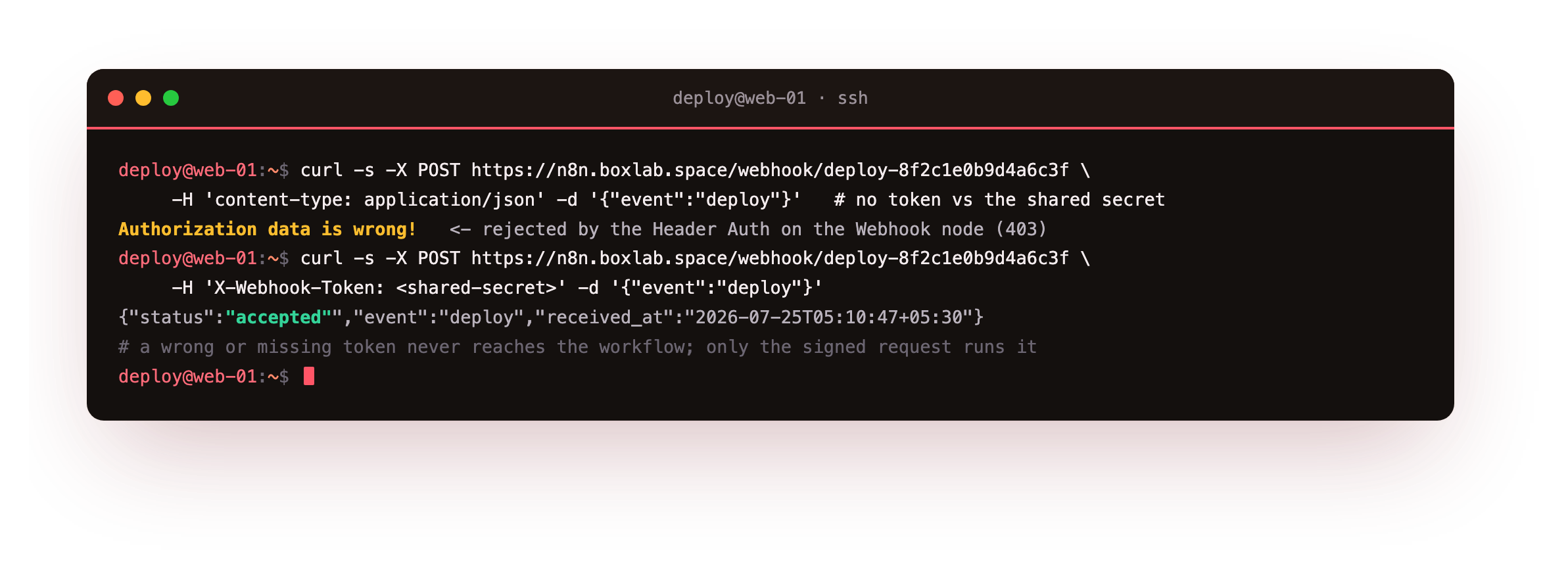

# no token vs the shared secret
curl -s -X POST https://n8n.example.com/webhook/deploy-8f2c1e0b9d4a6c3f \
     -H 'content-type: application/json' -d '{"event":"deploy"}'
# with the shared secret header
curl -s -X POST https://n8n.example.com/webhook/deploy-8f2c1e0b9d4a6c3f \
     -H 'X-Webhook-Token: <shared-secret>' -d '{"event":"deploy"}'

Without the token, n8n answers Authorization data is wrong! and returns 403 before the workflow runs at all: the Header Auth on the Webhook node rejects the caller. With the correct token, the workflow runs and responds {"status":"accepted",...}. A wrong or missing secret never reaches your logic, and it never becomes an execution.

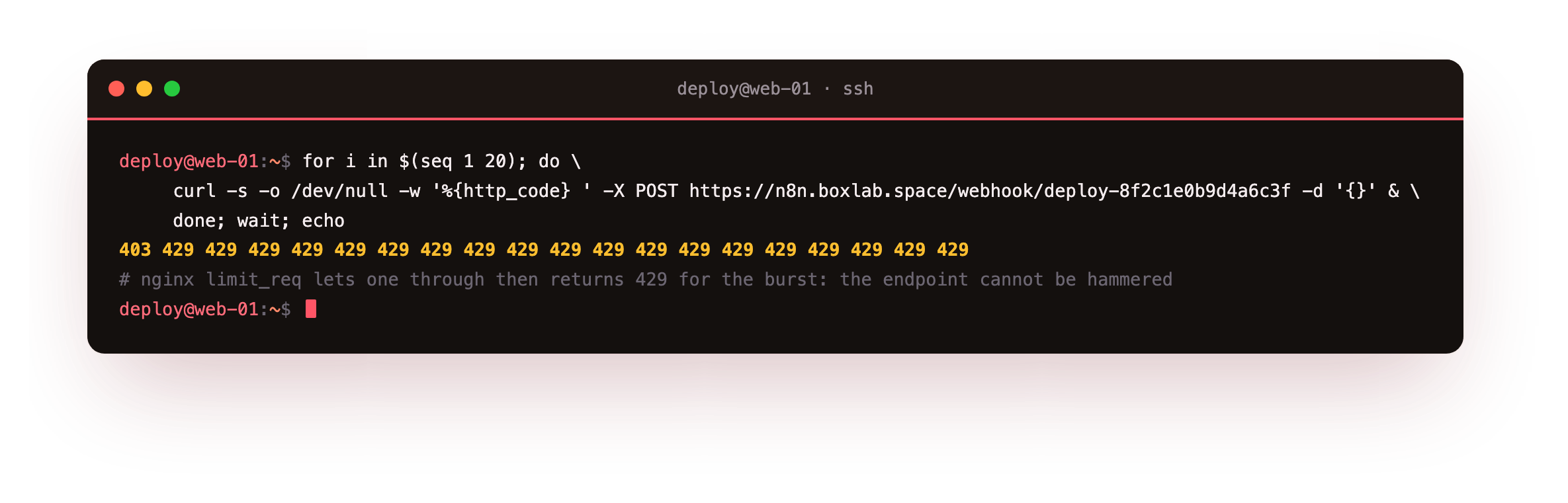

Now the rate limit. Fire a burst of twenty requests at the endpoint and watch nginx cut it off.

for i in $(seq 1 20); do
  curl -s -o /dev/null -w '%{http_code} ' \
       -X POST https://n8n.example.com/webhook/deploy-8f2c1e0b9d4a6c3f -d '{}' &
done; wait; echo

One request gets through and the rest come back 429. A caller cannot brute-force the token or drown the endpoint in traffic, because nginx throttles the flood before n8n spends any work on it. Only the calls that pass both the rate limit and the shared secret ever run.

Those accepted calls are real executions, and n8n records each one. Confirm the signed webhook is landing rows in the database.

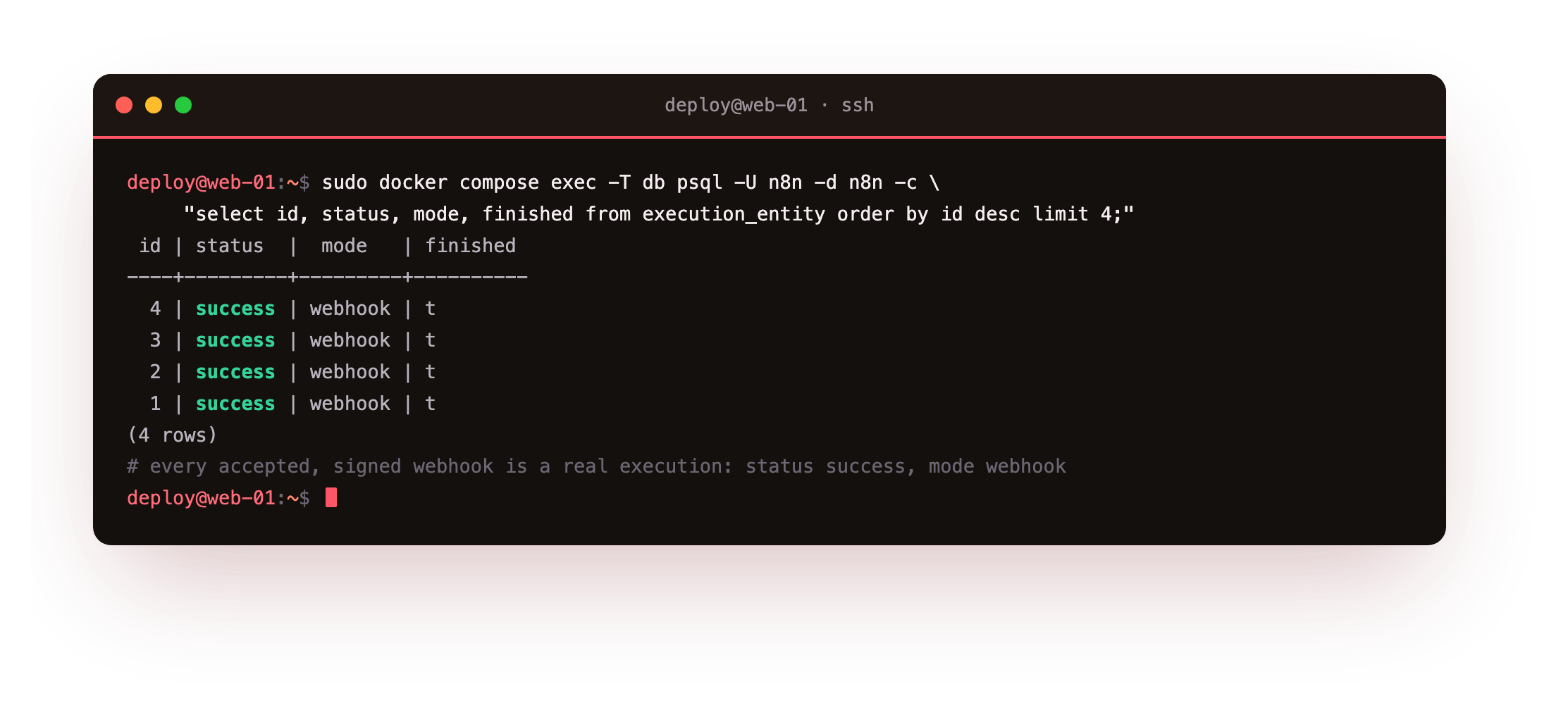

sudo docker compose exec -T db psql -U n8n -d n8n -c \
     "select id, status, mode, finished from execution_entity order by id desc limit 4;"

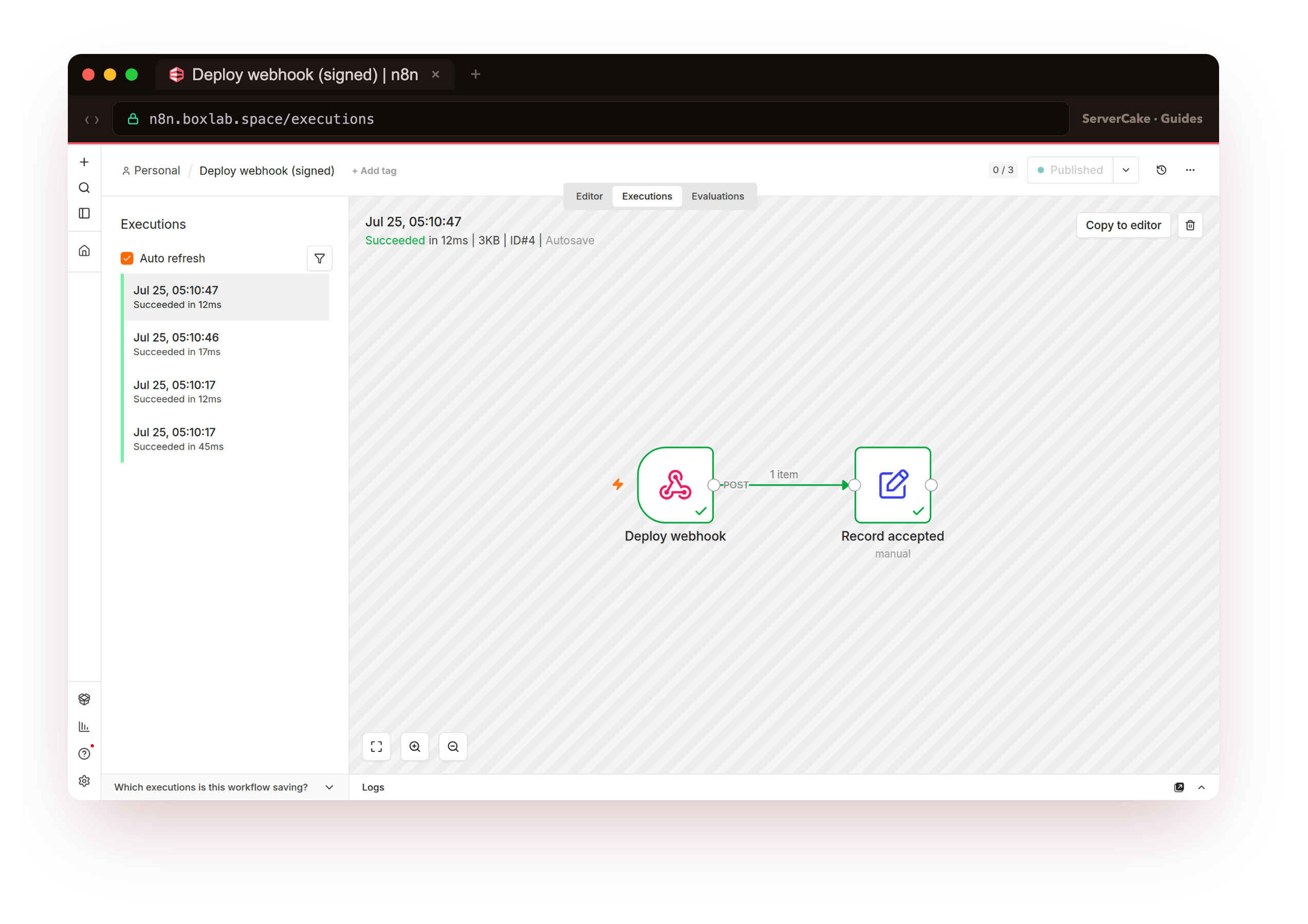

Every row is status success, mode webhook: proof that the requests which carried the secret ran end to end, and the ones that did not never appear. The Executions tab in the editor shows the same runs, each green.

Keep it safe: audit, updates and backups

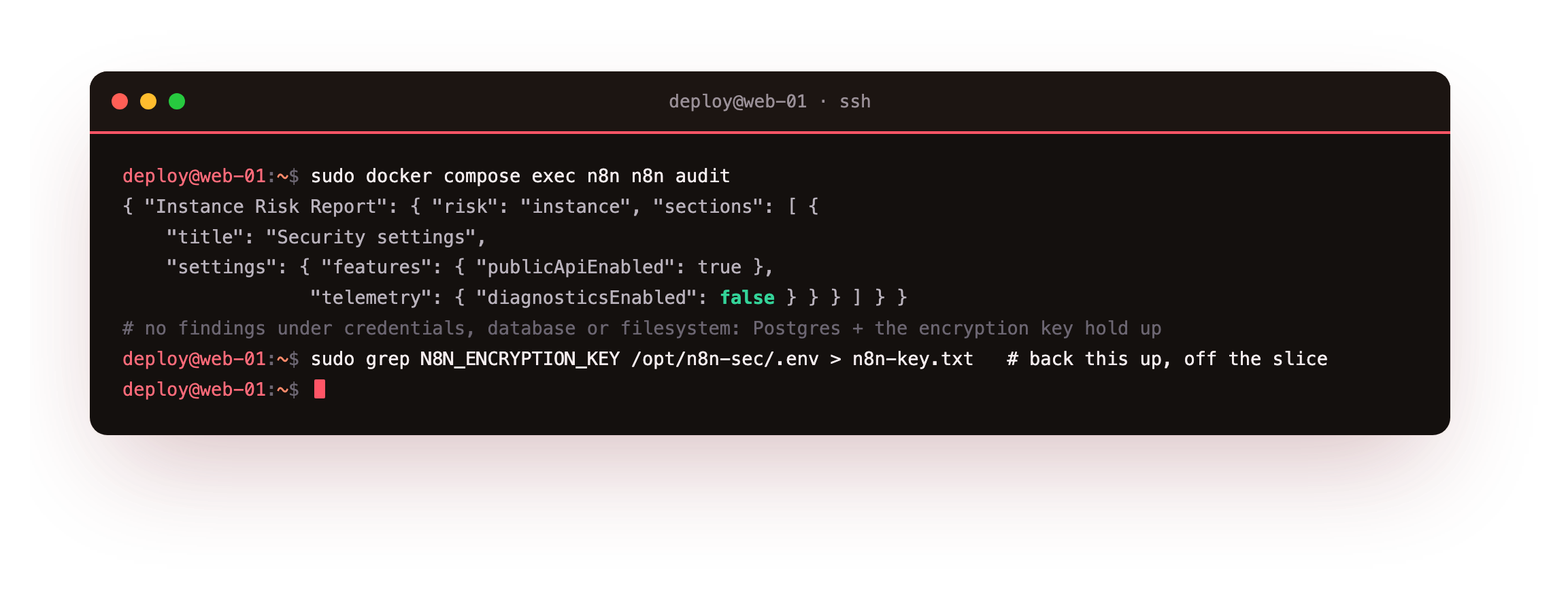

Hardening is not a one-time job, so end with the habits that keep it hardened. n8n ships a security audit that reports on how the instance is configured, run it and read what it says about your settings.

sudo docker compose exec n8n n8n audit
sudo grep N8N_ENCRYPTION_KEY /opt/n8n/.env > n8n-key.txt

The audit reports the instance security settings, with telemetry off, and returns no findings under the credentials, database or filesystem categories, because the credentials are encrypted, the store is Postgres rather than a loose SQLite file, and the data directory is a named volume. The second line copies the encryption key out so you can put it somewhere safe: back it up beside your database dump, off the slice, because the two are useless apart.

Updating is a pull and a recreate, which is also how you take security fixes: docker compose pull then up -d replaces the image and leaves your volumes, so workflows and credentials ride through. Watch the release notes, keep the host patched, and rerun the audit after any change to your environment. That is a hardened n8n: the API behind a login, credentials encrypted at rest, the process on localhost behind a firewall and real TLS, and webhooks that answer only to callers who hold the secret.
