Keep It Running and Add More Devices

Keep it running across reboots

A tunnel that works today is not yet one you can rely on. To keep it running you make it come back after a reboot, add a device or two safely, and understand the routing choices for later.

This chapter enables the systemd unit so the VPN survives a restart, layers on a preshared key, adds your phone as a second peer in the hub-and-spoke pattern, and closes with a deep dive under the hood: full-tunnel routing, NAT and DNS on Ubuntu 24.04. The result is a personal VPN you leave on and forget.

Make the tunnel survive a reboot

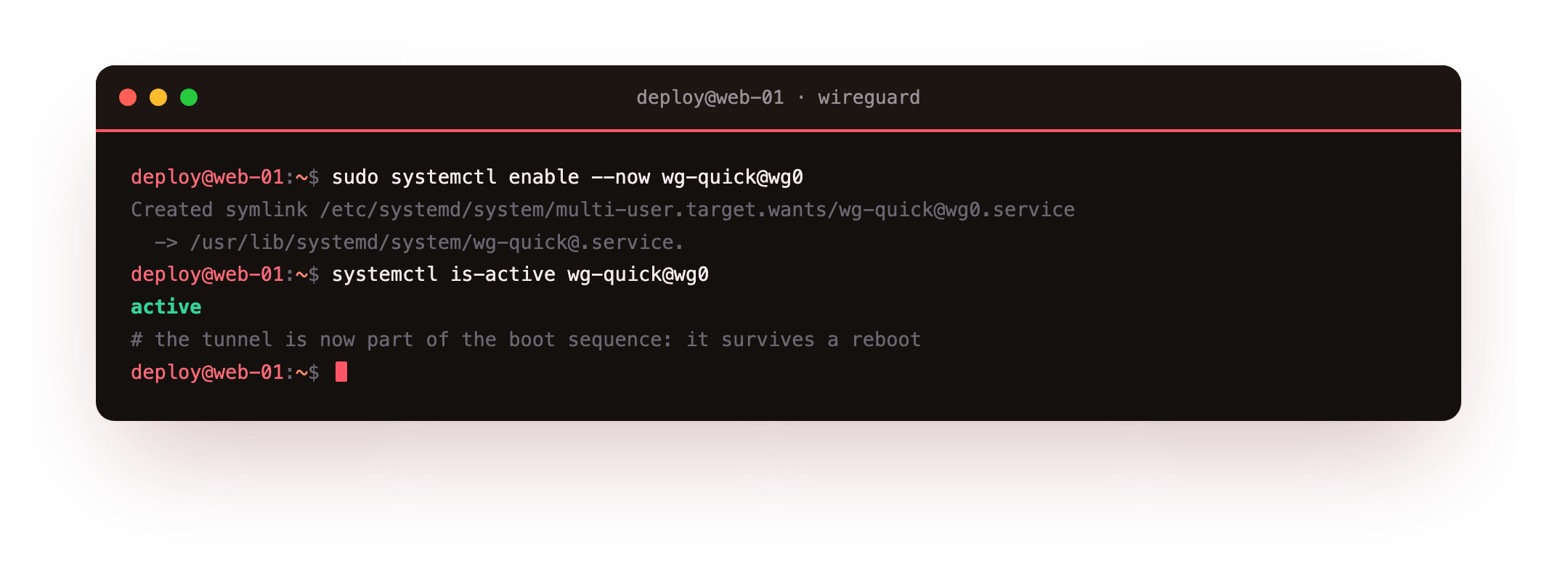

You brought the interface up by hand, but for a VPN you leave running it needs to start on boot. The package ships a systemd template, [email protected], where the part after the @ is the interface name. Enable it for wg0 and start it now in one command.

sudo systemctl enable --now wg-quick@wg0

The unit is a oneshot with RemainAfterExit=yes, so systemd treats the tunnel as active for its whole life and runs wg-quick down on shutdown. From now on the tunnel is part of the boot sequence like any other service.

Add a preshared key

WireGuard's public-key handshake stands on its own, but a PresharedKey adds a symmetric secret shared by two peers and mixed into the handshake. It is a hedge: even a future weakness in the public-key exchange still faces this extra layer. Generate one and attach it to a peer.

wg genpsk | sudo tee /etc/wireguard/laptop.psk
sudo wg set wg0 peer rcktfd2JnVcCxSWPowDvP7UI9EF45EXThqJ0rpYMyRs= preshared-key /etc/wireguard/laptop.psk

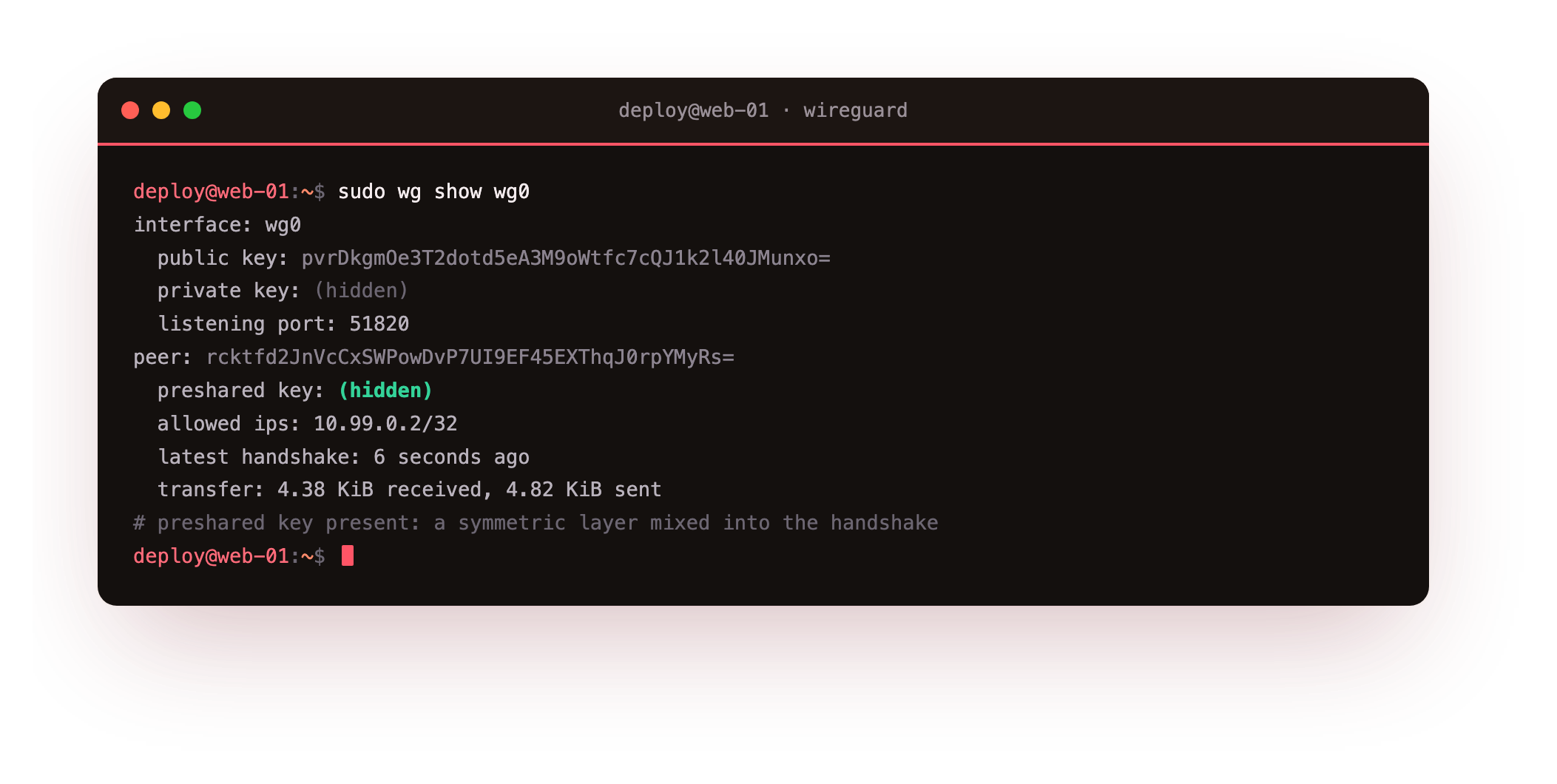

Add the same secret to the matching client config under its [Peer] block, then confirm it took on the server.

sudo wg show wg0

The peer now carries a preshared key: (hidden) line, and the value is never printed back. Keys should also rotate: generate a fresh keypair with wg genkey | wg pubkey, apply the new public key on both ends with wg set, and do it on a schedule or right after a device is lost.

Add more devices: the hub-and-spoke pattern

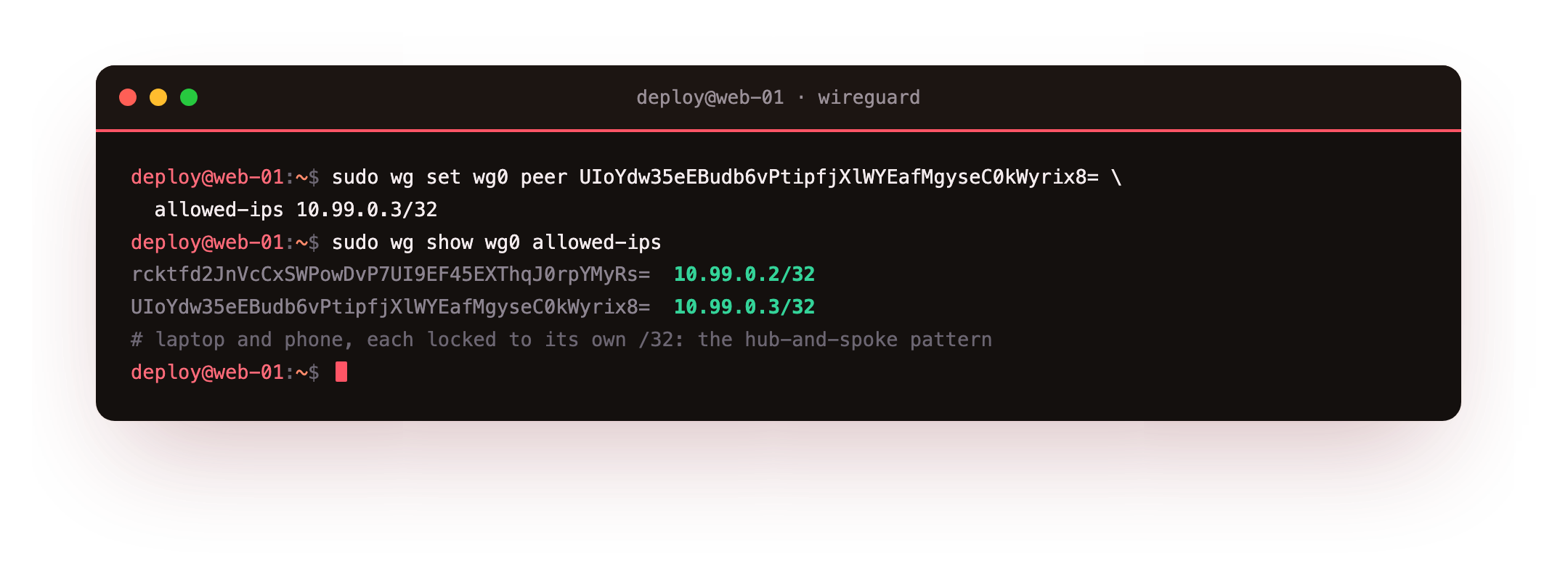

Growing the VPN is cheap. Each device gets its own keypair and its own address, and you register it with one line on the server. This is hub-and-spoke: the slice is the hub every device dials, and no two devices need to know each other's keys.

sudo wg set wg0 peer UIoYdw35eEBudb6vPtipfjXlWYEafMgyseC0kWyrix8= allowed-ips 10.99.0.3/32

Each peer is locked to a single /32, so the server routes only that address to it and accepts only that source. Keep every AllowedIPs as narrow as the device needs, since that entry is both the route and the inbound filter, and a wide range hands a stolen key far more reach than it should have.

Going further: full-tunnel routing

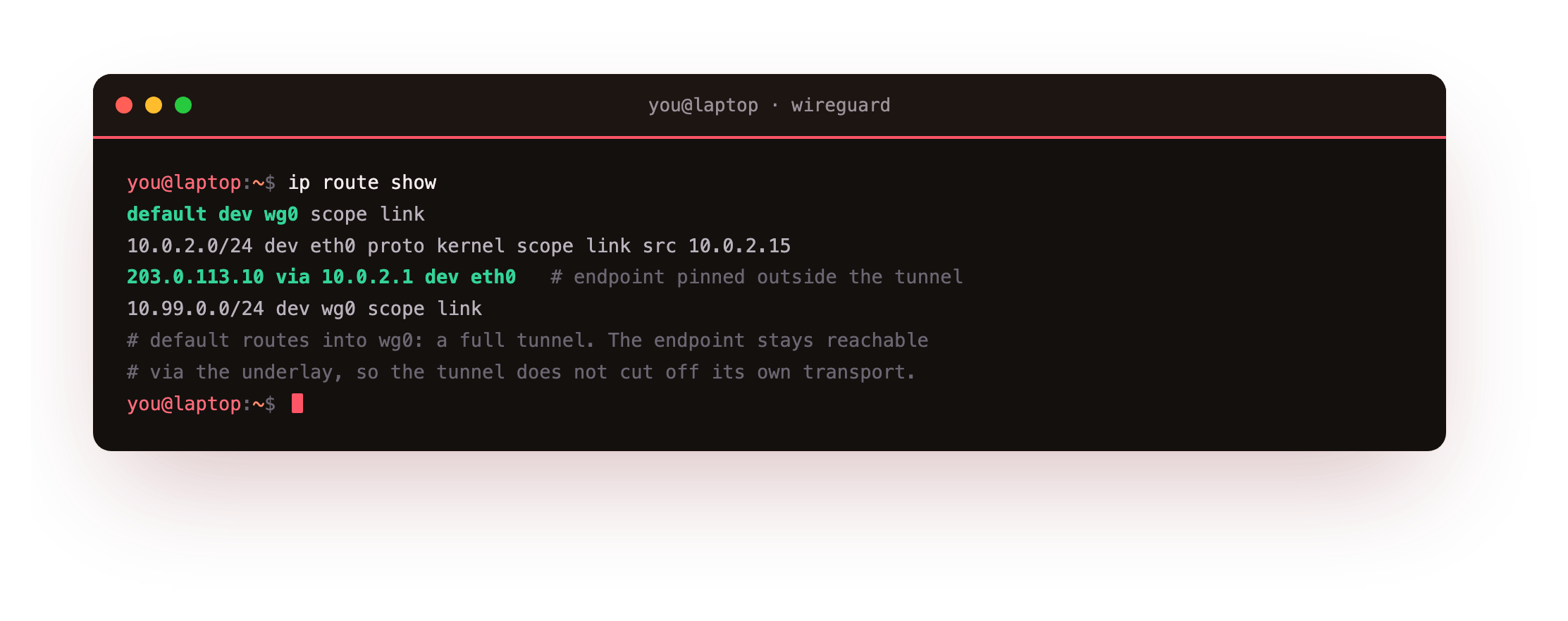

So far the clients are split-tunnel: only tunnel-subnet traffic uses WireGuard. To send everything through the slice, widen a client's AllowedIPs to 0.0.0.0/0 and let a default route point into wg0. That suits a hostile network or a policy that all traffic must egress from one place. Read the routing table back.

ip route show

The default dev wg0 line means every packet with no more specific route now enters the tunnel. The connected route for the underlay stays in place and is more specific, so the server's endpoint is still reached directly rather than looping back into the tunnel. That balance, everything through wg0 but the endpoint reached outside it, is what stops a full tunnel from cutting off its own transport.

Masquerade so the internet replies to the slice

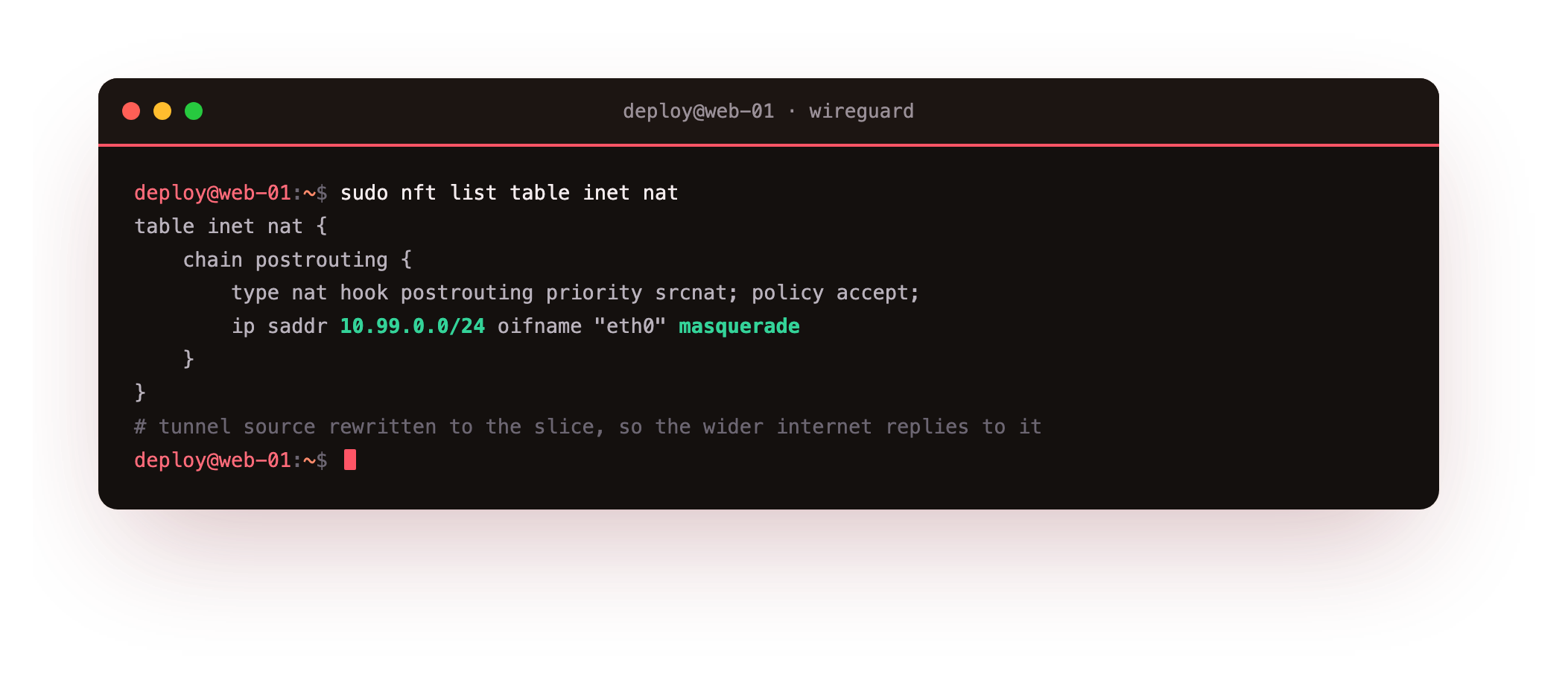

A full-tunnel client sends packets carrying its private tunnel source. The wider internet has no route back to 10.99.0.0/24, so the slice must masquerade: rewrite the source of tunnel traffic to its own public address as it leaves. Add the rule, enable forwarding, and read it back.

sudo nft list table inet nat

The postrouting chain matches ip saddr 10.99.0.0/24 leaving the public interface and applies masquerade. You also set net.ipv4.ip_forward=1 with sysctl, or the slice receives the client's packets and never passes them on. This is the same source NAT a home router does for a LAN, applied to the tunnel subnet, and it is what makes a full tunnel actually reach the outside.

DNS and cryptokey routing under the hood

Two details finish the picture. On a full tunnel, routing traffic does not change which resolver a client asks, so its DNS lookups can leak out the local link and reveal the sites it visits. Setting DNS = 10.99.0.1 in the client [Interface] points lookups at a resolver reached through the tunnel. wg-quick applies that on up and restores the previous resolver on down, because it changes name resolution, a userspace concern, at the same moment it changes routing.

Under all of this sits cryptokey routing. There is no routing protocol between peers and no session to establish. WireGuard keeps a table of public keys to AllowedIPs; an outbound packet is encrypted to the peer that owns its destination, and a decrypted packet is dropped unless its source falls in that peer's range. The key is the identity and the peer list is the routing table, which is why the whole VPN is a few short config files and nothing more.

Frequently asked questions

Recap

You now have a WireGuard VPN that keeps itself running. The wg-quick@wg0 systemd unit brings it back after a reboot, a preshared key adds a symmetric layer you confirm as preshared key: (hidden), and each device is one wg set line on its own /32 in the hub-and-spoke pattern. The deep dive covered full-tunnel routing, the masquerade that makes it reach the internet, DNS through the tunnel, and the cryptokey routing that ties it together.

That closes the series. You installed WireGuard from zero, connected your laptop and phone, reached a private service the public internet cannot see, and made the whole thing durable, all on a single slice.
